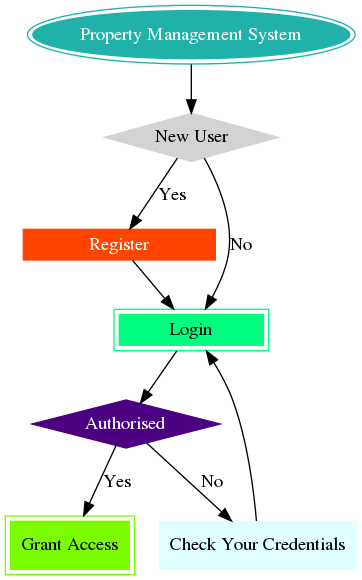

digraph { a->b b->d [label="Yes", labelfontcolor=green] b->c [label="No", labelfontcolor=red] d->c c->e e->f [label="Yes"] e->g [label="No"] g->c a [shap=ellipse, peripheries=2,color= lightseagreen, label="Property Management System", style=filled, fontcolor=white]; b [shape=diamond, label="New User" color="lightgray", style=filled] c [shape=box, label="Login",peripheries=2, height=0.25, width=1.5, color=springgreen,style=filled, fontcolor=black ] d [shape=box, label="Register", height=0.25, width=2, color=orangered,style=filled, fontcolor=white ] e [shape=diamond, label="Authorised", color=indigo, fontcolor=white, style=filled] f [shape=box, label="Grant Access", peripheries=2,color=lawngreen, fontcolor=white, style=filled, fontcolor=black ] g [shape=box, label="Check Your Credentials", width=2, color= lightcyan, style=filled ,fontcolor=black ] }
